Max Cap-Division-Pan Size
2-50N --0.01N
100-500N --0.1N
1KN --0.1N

*. Indicator capacity: 1N-1000KN
*. Accuracy: 0.5%, division to 0.1%
*. Having 5 kinds of test modes, 3 kinds of display usages for selection
*. Units : N, Kg and lb; above 10KN,KN,Kkg and Klb
*. Function of reset gravity acceleration
*. Peak hold and auto clearance function
*. Set the tolerance limit (Max/Min)
*. Super memory function - deposit 888 test values.
*. RS-232 output;
a. match a free software for analysis （without graph).
b. match a synchronous test software（software is optional), it can connect to PC to get synchronous graph, and also can reserve ,print, analysis, and so on.

Tension- Capacity-Cable diameter
1t -- 1t --Ø8-16
2t -- 1t -- Ø8-16
5t -- 2t --Ø8-16
10t-- 5t --Ø14-22
20t-- 10t --Ø20-26
Click picture for details.

Alloy steel

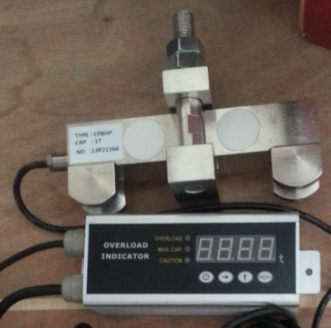

Over load guard of small dimensions for cranes
and lifting systems
Can be installed easily without cutting or
unloading the line.
Widely used outdoor in harsh environment
With function of audile alarm, immediate alarm,
cutting off crane power, display weighting value

Capacity-Cable diameter
1t --Ø8-16
2t --Ø16-26
5t --Ø24-36
10t --Ø24-36



Click picture for details.

*. Over load guard of small dimensions for cranes and lifting systems
*. Can be installed easily without cutting or unloading the line.
*. Widely used outdoor in harsh environment
*. Option: PV-1 indicator
